Page 2
(follows page 1)

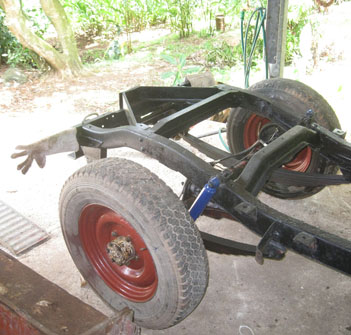

After much sanding, welding ant painting, new break lines, springs equalized, chassis was done.

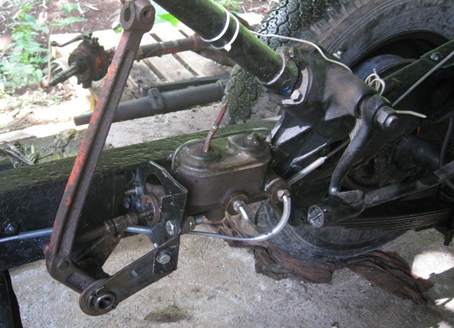

Dual brake cylinder installed

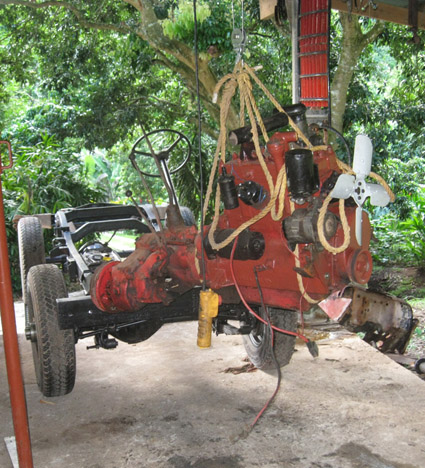

Rebuilt engine (1950 flathead Willys) and starter ready to be set on rebuilt chassis.

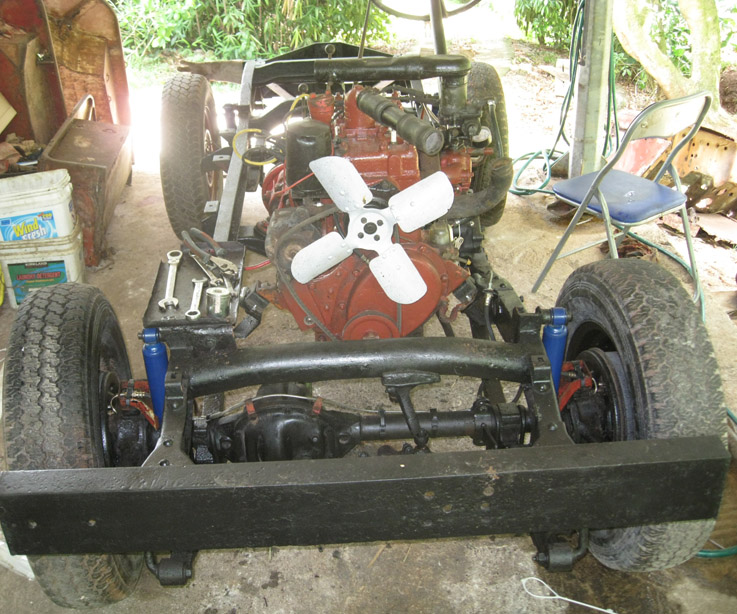

Engine on chassis - 11"brakes (off a CJ5) in front, 9" on rear, new brake lines and cylinders all over.

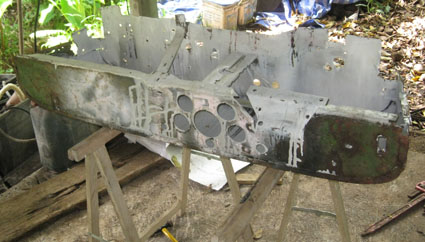

the cut out CJ-3B cowl to be set on the CJ-3A lower frame with steering column cut-out.

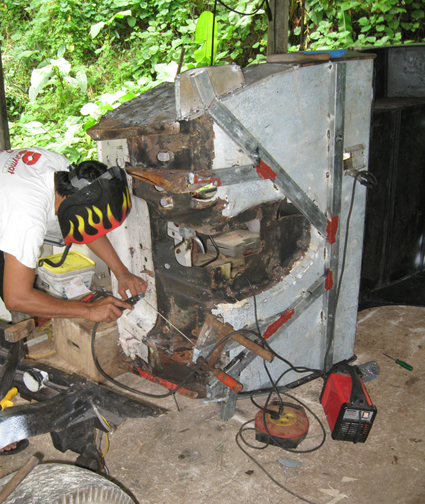

Cowl in place, the work started on the body witl 1,5 mm (18 gauge) galvanized steel plate
weld, adjust, weld...

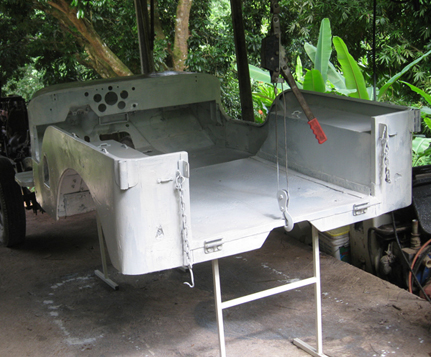

until body is ready to be primed. Finaly...
CONTINUED PAGE 3 (THE FINISHED JEEP)
